- Type of parking

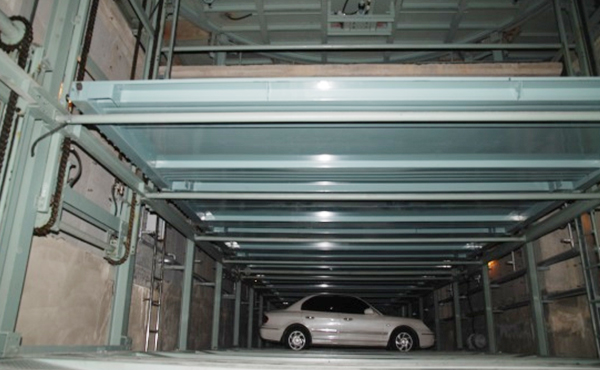

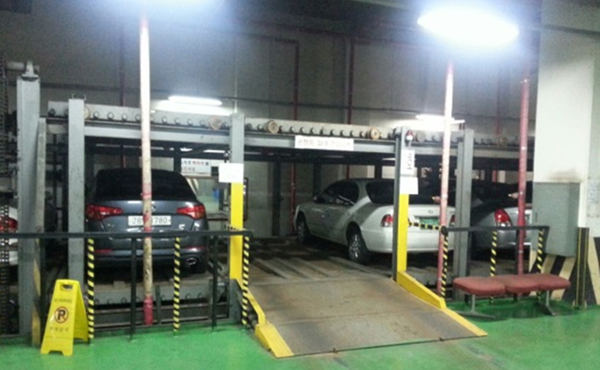

- Multi layer circulation parking transferred by pallet.
Feature

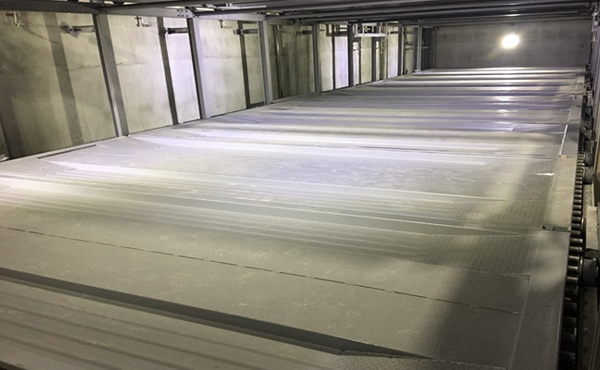

- Horizontal movements (circulation)by pallet combined with main lift and sub lift.
- Suitable for narrow and long-shaped parking lots under g round or above ground.
- Built-in turn tables make forward parking/retrieval possible.
- Simultaneously operated, retrieval time is saved in standard composition.
One of recommended option for small capacity in suitable specified area
Specification
*Please scroll horizontally to check the contents.
| Category | Specification | |
|---|---|---|
| Optimal Capacity | Upon multi-levels, less than 40 cars per unit | |
| Number of level | 2~4 Levels | |
| Available Vehicle to park (standard) |
Length : 5150mm | Width : 2100mm (side mirror inclusion) Height : 1580/1950mm | Weight : 2.5 tons |
|
| Lift (chain type) | Lifting speed | Max 15m / min |
| Motor capacity | 15~18kw | |
| Travelling device | Travelling speed | 40~60 / min |
| Motor capacity | 3.7~5.5kw | |
| User interface (Operation) | Touch Screen or RF card swiping PC control (optional) | |
| Motor control | Drive by inverter | |
| Power supply | AC 220/380V, 3Ø, 50/60Hz (shall be converted into local condition) | |
| Type of Structure | Metal frame or reinforce concrete | |
| Mode of operation | Auto / Semi auto / Manual | |
